Story by Dale Pearcy AKA 'Wicked_Sludge'

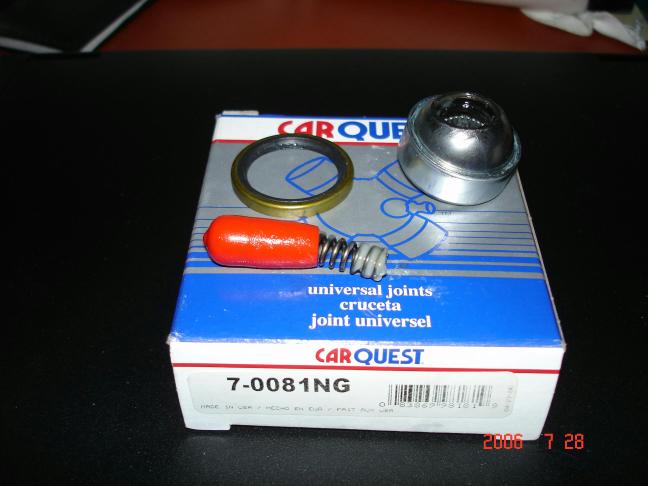

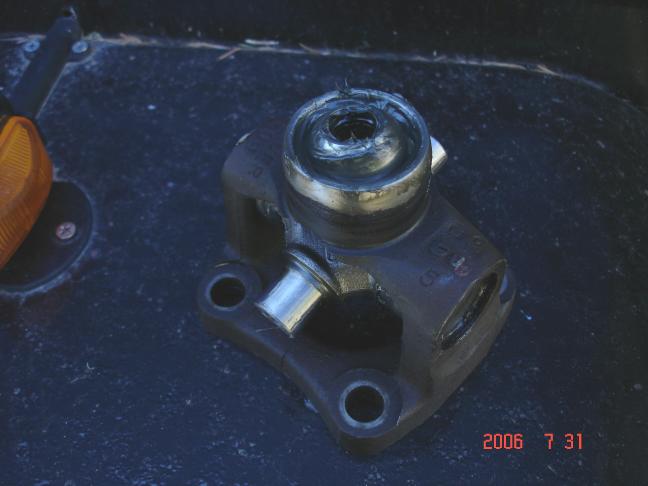

Hereís what we'll be replacing. About $30 at the local parts store scored me a ball in a socket, a spring, and a seal; hardly seems worth it but you gotta do what you gotta do! It's also recommended that you replace both the u-joints at the CV end of the shaft during this project since they both have to come out anyway.

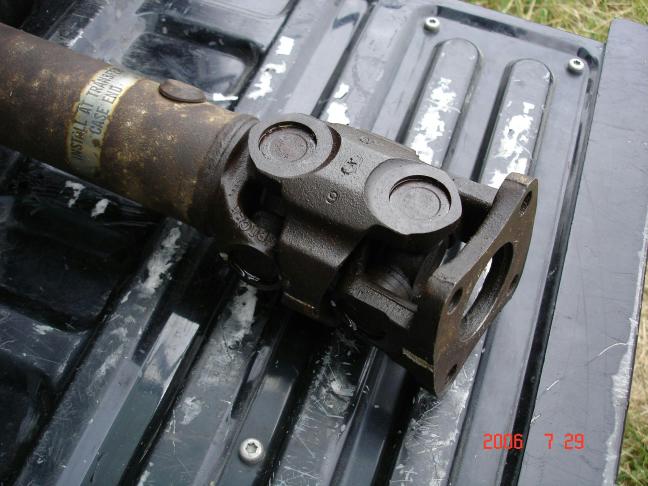

Start by removing the drive shaft (block tires, set parking brake, disconnect negative battery cable...you know the drill). MARK THE POSITIONS of the flange, center yoke, and drive line so they can be installed in the same position. This is crucial to maintain the balance of the drive line.

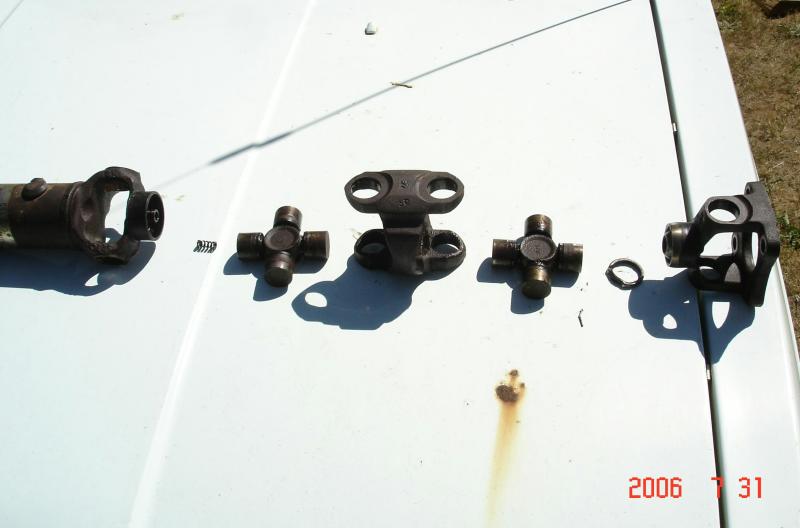

Remove the c-clips and end caps of the u-joints. The seal for the ball in my joint fell out after I got the u-joints out, but if yours is still whole, you'll have to pry it out.

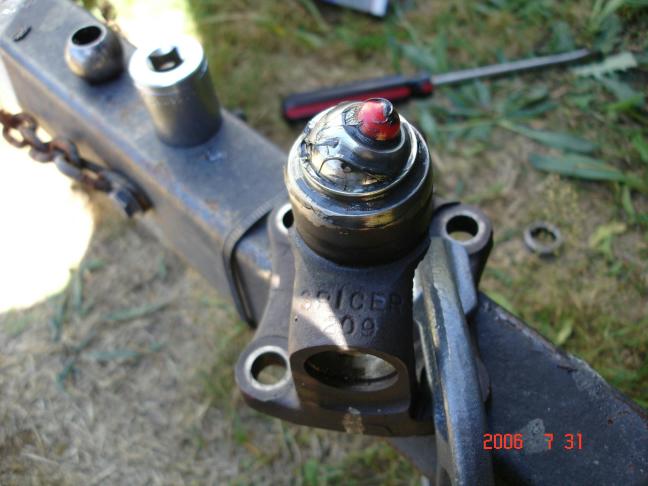

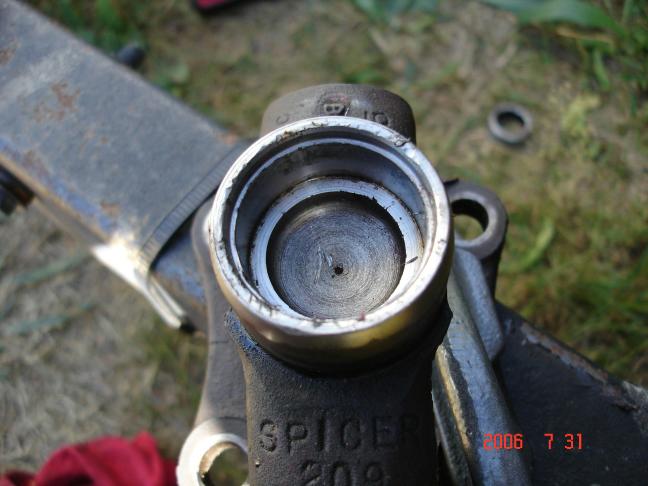

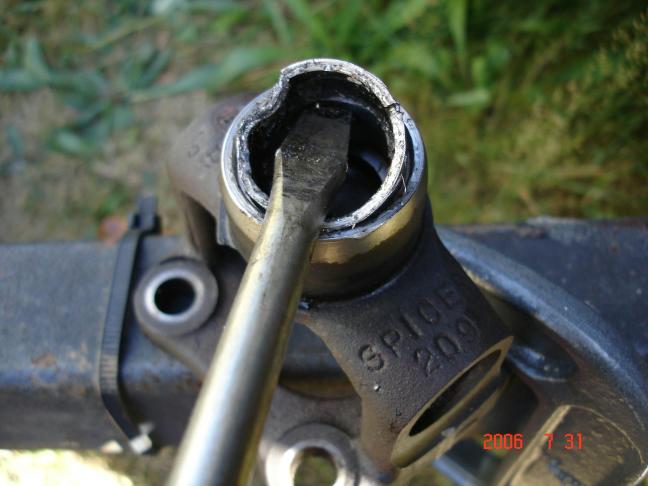

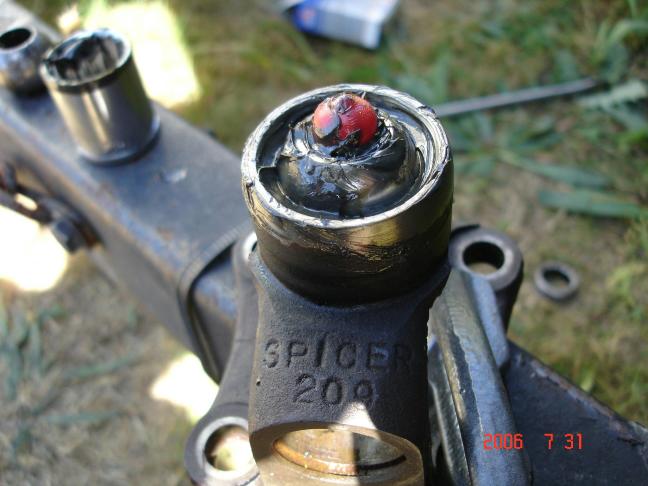

Turn the ball sideways in its socket and stick a big screwdriver or pry bar in the hole and pry it out. Itís in there tight, so it'll take some "persuasion". After the ball is out, use a chisel to dent the race inward, then pry it out.

Sand any burrs or rust off of the flange socket. Coat the socket with grease to aid in installation and to give the new ball a little extra lube after its installed.

Place the new ball and race assembly in the flange socket. Make sure you leave the "condom" in during the installation process to keep the needle bearings from falling out.

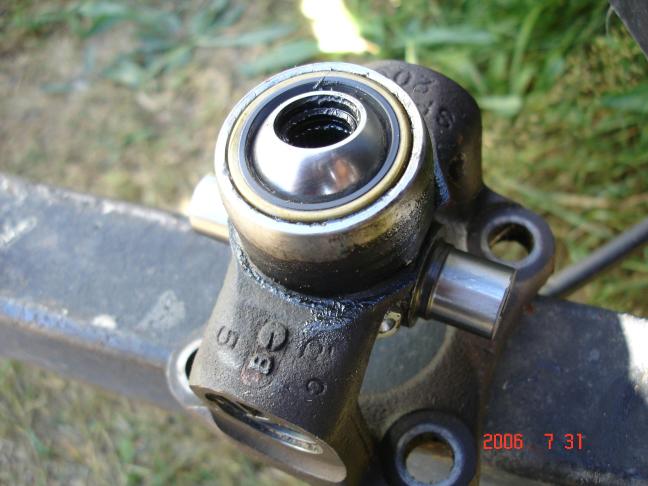

Use a 15/16 socket and a hammer to drive the new ball/socket into place. Grease squirted out of a tiny hole in the bottom of my flange after driving the ball in...guess I used enough grease!

Press in the new seal, I used a 27MM socket and hammer. Some may notice the u-joint is already installed on the flange in this pic. Thatís because I almost forgot to install the seal before re-assembling the joint, whoops.

Install this u-joint first and clean up and grease the alignment stud and the big cup-shaped seal on the end of the drive line. CHECK YOUR ALIGNMENT MARKS before installing the joint!

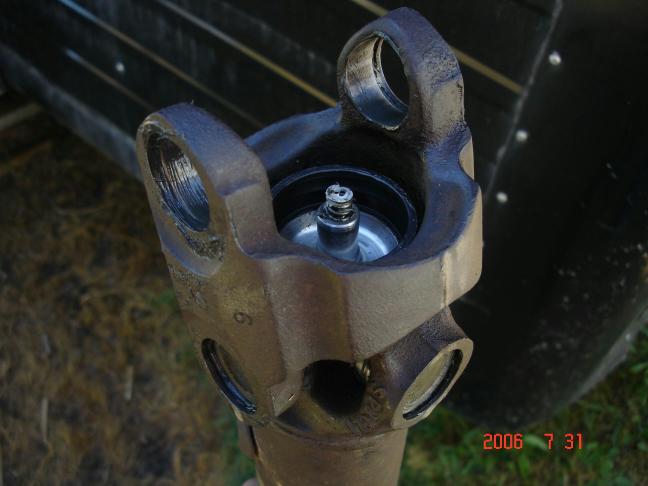

Install the second u-joint in the flange. Remove the rubber "condom" from the ball. Install the spring that comes with the ball kit into the end of the alignment stud. CAREFULLY (as to not knock over the needle bearings inside the ball) install the second half of the joint, making sure to line your marks up.

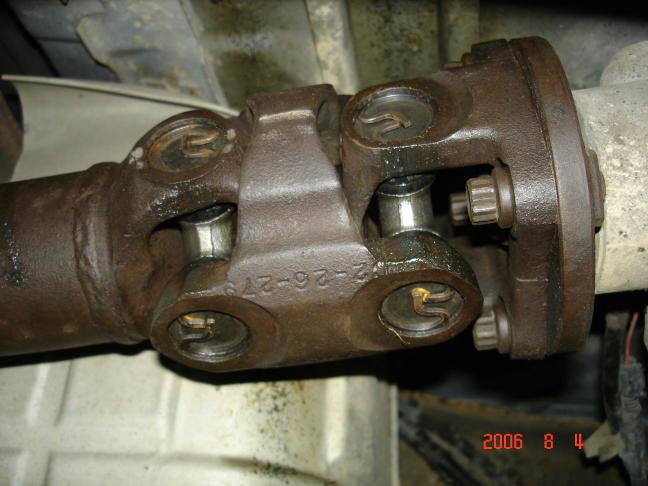

Install all your c-clips, then reinstall the drive line and thatís it! You now have a Double Cardan type CV joint good for another 100,000 miles!
