Old 02-23-2009, 02:07 PM   #1
Jim Oaks
Building another truck




Jim Oaks's Avatar

Join Date: Aug 2000
Location: Salem, Ohio
Posts: 6,695
Vehicle Year: 1983 & 1996
Vehicle Make: Ford
Vehicle Model: Ranger
I use this vehicle for: Dedicated trail rig!
My credo: Happy wife, happy life.
Rep Power: 10
Jim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond reputeJim Oaks has a reputation beyond repute
Arrow SAS Front Spring Height Samples

Here's a link to the page:

http://www.therangerstation.com/tech...t_samples.html

I assembled some photos from the site of trucks with solid axle swaps.

All these axles are either Dana 30, 44 or 60. We didn't go in to detail on the build since our only goal is to show height comparisons.


- Front Coil Springs -





This 1993 Ford Ranger belongs to forum member Brendank69. It uses a Cage Off-Road Solid Axle Swap Radius Arm kit, Ballistic Fabrication coil mounts, BC Bronco 5.5-Inch early Bronco coil springs, Skyjacker 6-inch Ranger rear springs, Belltech extended shackles, 3-inch body lift, and 38.5" tires.


This 1997 Ford Ranger belongs to forum member wahlstrom1. It uses 7-inch Skyjacker early Bronco front coils, 5.5-inch Chevy rear leafs, Belltech 6400 shackles, and 35" BFG Krawlers.


- Front Leaf Springs -





This Ranger belongs to forum member DieselSmoke. As you can see, the truck is a rolling chassis and far from finished. It's shown here on 36" tires so it can be moved during the build. The front uses 6-inch lift Chevy leaf springs. Rear springs are 63-inch Chevy springs as well. Truck has a 3-inch body lift.



This Ranger belongs to forum member JunkYardRanger. It uses 6-inch Chevy springs in the front. The rears are from a 1977 Ford F-250. The Ranger also has a 3-inch body lift and 38" tires.



This 1993 Ford Ranger belongs to forum member sabor6. It uses 4-inch ProComp YJ leaf springs in front, F-150 leaf springs in back with a 4-inch block. Tires are 38x15.50x15 TSL Radials.


We could use some other examples, especially on the 1998 and newer Rangers.
__________________
My mother thinks it's funny that I failed computer science in high school.




Vote For TRS In Top 4x4 Sites

Last edited by Jim Oaks; 02-23-2009 at 02:15 PM.
Jim Oaks is offline   Reply With Quote
Forum Notices (Not shown to 'Premium Members')

 Reminder:

 We're looking for participants to help move our banner from Alaska to Florida: Click HERE.

 Click HERE to see the banner map.

 Want to become a Premium Member & not see these notices? Click HERE.

Want your truck considered for Truck Of The Month? Click HERE.

Don't forget to vote!

Old 02-23-2009, 02:19 PM   #2
KELLY88
Member

KELLY88's Avatar

Join Date: Feb 2008
Location: Lake Mary/Daytona Beach, FL
Posts: 2,383
Vehicle Year: 1997, 2005
Vehicle Make: Ford
Vehicle Model: Ranger STX, Ranger Edge
I use this vehicle for: Offroader, Daily Driver
Rep Power: 18
KELLY88 is on a distinguished road
Send a message via AIM to KELLY88
Default

This guy is not a member on here I don't think but he SAS'd his 2002 Ranger. Wrote a pretty good log of the project as well.

http://www.cardomain.com/ride/296394/25
__________________
1997 Ranger STX 4.0L 4X4....... 200,000 miles and counting
4" Superlift w/ Pro Comp shocks, 33" Mud Terrains, 4.56 Gears, Iridium plugs, Warn manual hubs, Flowmaster 40
"I can predict the motions of the cosmos but I can not calculate the madness of the people." - Isaac Newton, 1727
KELLY88 is offline   Reply With Quote
Old 02-24-2009, 12:51 PM   #3
JohnnyU
"Outlaw"


JohnnyU's Avatar

Join Date: Sep 2004
Location: Chillicothe, Illinois
Posts: 4,347
Vehicle Year: 2008
Vehicle Make: Chevrolet
Vehicle Model: Trailblazer SS
Rep Power: 10
JohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond reputeJohnnyU has a reputation beyond repute
Default

One thing that's very important to remember is the coil bucket that's used. If the factory buckets are used, things remain equal. When someone uses an aftermarket coil bucket (like Ballistic Fabrication's), things start changing because of the variables in mounting locations. Just a helpful tip.
__________________
Trail Rig (1) - 1991 Chevy Silverado - [Build Thread] (SOLD 12/2/2011)
Trail Rig (2) - 2007 Polaris Sportsman 500HO EFI
Tow Rig - 2004 Dodge Ram CTD - [Build Thread]


Earth Resin Offroad
JohnnyU is offline   Reply With Quote
Old 02-24-2009, 04:44 PM   #4
wahlstrom1
J-man HD Mech




wahlstrom1's Avatar

Join Date: Aug 2007
Location: Edmonton Alberta
Posts: 3,024
Rep Power: 10
wahlstrom1 is a jewel in the roughwahlstrom1 is a jewel in the roughwahlstrom1 is a jewel in the roughwahlstrom1 is a jewel in the rough
Default

****I also have the factory rear block.*** It's a little un-neccessary as I have a lot of rake, but I thought I'd just let ya know for accuracy. Here's a better pic, if you wanna add it. This is with the winch mounted up front as well.



-andrew
__________________
UNDER RE-CONSTRUCTION
97' U.A. Ranger, Bent and Broke...

Quote:
Originally Posted by Kyle M. View Post
LOL, wheres the loony bin, cuz we be crazay

Last edited by wahlstrom1; 02-24-2009 at 04:56 PM.
wahlstrom1 is offline   Reply With Quote
Old 02-24-2009, 07:19 PM   #5
triumphrider-1
Member

triumphrider-1's Avatar

Join Date: Nov 2007
Location: Port Huron, MI
Posts: 2,028
Vehicle Year: 1999
Vehicle Make: Ford
Vehicle Model: Ranger XLT
I use this vehicle for: Pondering
Rep Power: 21
triumphrider-1 is a jewel in the roughtriumphrider-1 is a jewel in the roughtriumphrider-1 is a jewel in the roughtriumphrider-1 is a jewel in the rough
Default

Quote:
Originally Posted by KELLY88 View Post
This guy is not a member on here I don't think but he SAS'd his 2002 Ranger. Wrote a pretty good log of the project as well.

http://www.cardomain.com/ride/296394/25
Thanks for posting that, I can use that.
__________________
1999 Ranger XLT 4x4
Supercab four door
3.0L flex fuel, automatic transmission

"Minds are like parachutes, they only function when open" - Anna Pavlova
triumphrider-1 is offline   Reply With Quote
Old 04-29-2009, 12:04 PM   #6
Bray D
2012 UA Ranger


Bray D's Avatar

Join Date: Aug 2007
Location: Manito, IL
Posts: 2,110
Vehicle Year: 1996
Vehicle Make: Ford
Vehicle Model: Ranger
I use this vehicle for: DD/Weekend Warrior
Rep Power: 20
Bray D will become famous soon enoughBray D will become famous soon enough
Default

Here's my SAS'd ranger with WildHorses4x4's 3.5" lift EB coils. I bought them used, so they're aleady broken in. You can check my build thread to see how the full size buckets are mounted, but I'd say they're within 1" of the stock bucket height.

For reference, I've got "un-bastardized" 63" chevy leaves in the rear (includes OL leaf), with the 6400 shackles and stock blocks.



after trimming my bumper a bit, and the rear of the fender (from the body line down), the tires clear pretty good. Brand new 35" SSR's



EDIT: saw that litlebigfoot posted up ground to truck height specs, thought this was a good idea. My truck is 23.5" from the ground to the bottom of frame right in the center of the truck. 24" is max legal frame height
__________________
'96 ranger - narrowed HP D44, ChroMo shafts, geared/locked, hi-steer - 31 spline 8.8, dutchman shafts -1350/1354 doubler - 37's on TR beadlocks. Driven daily.

Last edited by Bray D; 04-29-2009 at 03:17 PM.
Bray D is offline   Reply With Quote
Old 04-29-2009, 02:00 PM   #7
LittleBigFoot
Member




LittleBigFoot's Avatar

Join Date: Aug 2007
Location: Denver Colorado
Posts: 1,654
Vehicle Year: 79-00
Vehicle Make: Mostly Ford.
Vehicle Model: Rangerish-Broncoish-Truggyish Thing.
I use this vehicle for: The 13th step of the 12 step program.
Rep Power: 18
LittleBigFoot is on a distinguished road
Send a message via AIM to LittleBigFoot Send a message via MSN to LittleBigFoot
Default

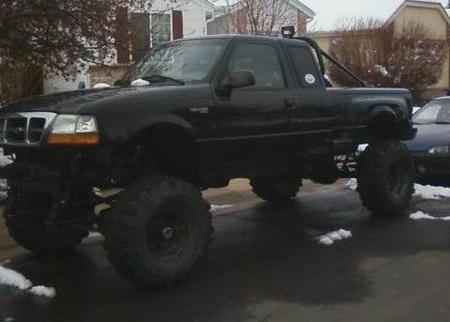

I used 52" long leaves from the rear of a 3/4 ton 2wd Chebby. 3 shorts pulled from the pack. 3" comes from the crossmember design, then there's belltech shackles, and hangers that give about 1.5". SOA



Sorry it's rotated. I'm doin this from my girlfrind's computer.

The bottom of the chassis measures 33" in the front.

Under the rocker pannel right behind the wheelwell measures 32". (This is with a 3" body lift and 35" tires)

LIFT HEIGHT: Total lift comes to about 12" suspension + 3" body.

Now before you call me retarded, my stance is also 15" wider, so I kept it to a 1 to 1 ratio height to width.

Attached Images

__________________
Wheeler: Ranger With Some Stuff Done
DD/Tow Pig: 1972 F250 With Some Stuff Getting Done

Last edited by Jim Oaks; 06-29-2009 at 12:48 AM. Reason: Rotated image
LittleBigFoot is offline   Reply With Quote
Old 03-15-2011, 12:05 PM   #8
Ranger99OR
New Member

Join Date: Mar 2011
Posts: 1
Vehicle Year: 1999
Vehicle Make: Ford
Vehicle Model: Ranger
Rep Power: 0
Ranger99OR is on a distinguished road
Default 99 Ranger SAS help.

Quote:
Originally Posted by Bray D View Post
Here's my SAS'd ranger with WildHorses4x4's 3.5" lift EB coils. I bought them used, so they're aleady broken in. You can check my build thread to see how the full size buckets are mounted, but I'd say they're within 1" of the stock bucket height.

For reference, I've got "un-bastardized" 63" chevy leaves in the rear (includes OL leaf), with the 6400 shackles and stock blocks.



after trimming my bumper a bit, and the rear of the fender (from the body line down), the tires clear pretty good. Brand new 35" SSR's



EDIT: saw that litlebigfoot posted up ground to truck height specs, thought this was a good idea. My truck is 23.5" from the ground to the bottom of frame right in the center of the truck. 24" is max legal frame height
I love this Ranger, single cab sas. Real clean truck. What mount setups and suspension setups did you use, I am planning on doing a dana 44/Ford 9 inch and I was wondering how hard it was to fab up mounts...
Ranger99OR is offline   Reply With Quote
Old 04-13-2011, 07:19 PM   #9
Bray D
2012 UA Ranger


Bray D's Avatar

Join Date: Aug 2007
Location: Manito, IL
Posts: 2,110
Vehicle Year: 1996
Vehicle Make: Ford
Vehicle Model: Ranger
I use this vehicle for: DD/Weekend Warrior
Rep Power: 20
Bray D will become famous soon enoughBray D will become famous soon enough
Default

Quote:
Originally Posted by Ranger99OR View Post
I love this Ranger, single cab sas. Real clean truck. What mount setups and suspension setups did you use, I am planning on doing a dana 44/Ford 9 inch and I was wondering how hard it was to fab up mounts...
The truck is not so clean anymore. The SAS brought me over to the darkside.

I ended up having to fab or modify EVERY SINGLE BRACKET. Even the stuff I thought would be a simple bolt on - like the f250 shock towers. It took a lot of work, but well worth it.

Build Thread
__________________
'96 ranger - narrowed HP D44, ChroMo shafts, geared/locked, hi-steer - 31 spline 8.8, dutchman shafts -1350/1354 doubler - 37's on TR beadlocks. Driven daily.
Bray D is offline   Reply With Quote
Old 03-29-2012, 10:41 PM   #10
Str8sixfan
Member

Str8sixfan's Avatar

Join Date: Mar 2012
Posts: 270
Vehicle Year: 1997
Vehicle Make: Ford
Vehicle Model: Ranger
I use this vehicle for: trying to get good gas mileage but not
Rep Power: 6
Str8sixfan is on a distinguished road
Default

Anyone use Ranger TTB lift springs in conjunction with a SAS? I found these on craigslist:

http://kansascity.craigslist.org/pts/2888756397.html

Seems like a decent deal, but not sure how they'll set with a D30.
Str8sixfan is offline   Reply With Quote
