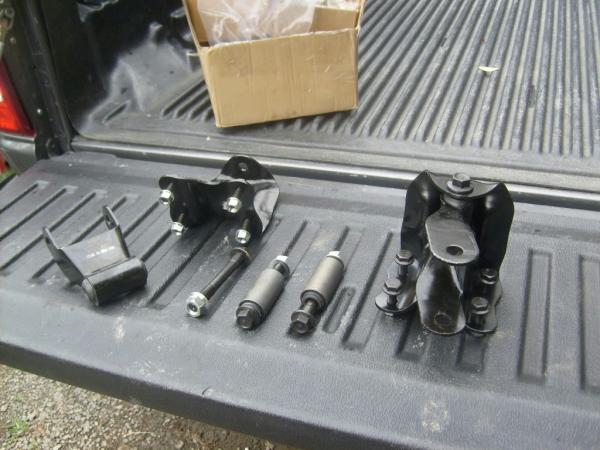

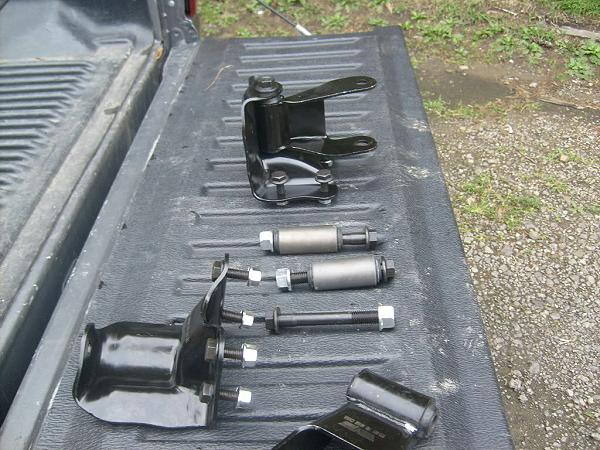

Since I was doing these I thought I would Submit a how to. First off the parts. I bought these kits off eBay. At 43.95 a side its way cheaper than Ford and includes the bolts. Even though they are made in China (and I'm pro American) the Ford ones are definitely junk! Both sides shipped to my door was $102.25, and I had them the next day.

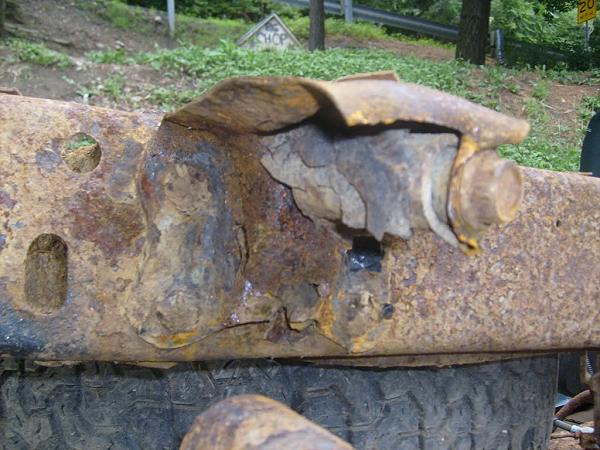

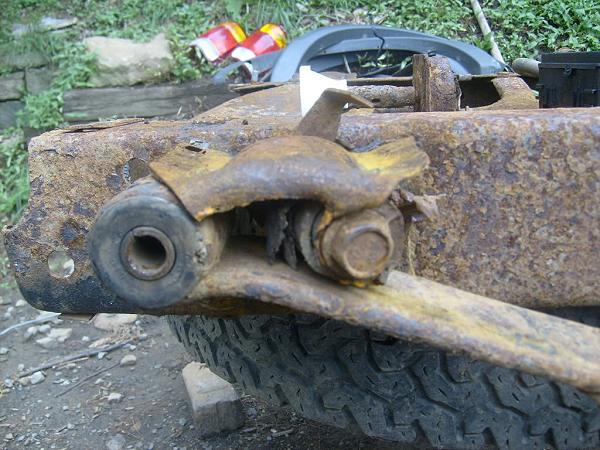

The damage, after the shackle was removed.

You will have to jack the frame up to relieve spring tension.

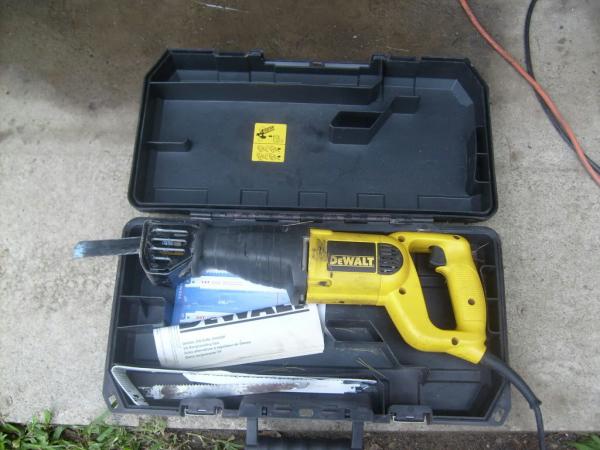

Optional tool- Sawzall! It makes life a little easier by getting the extra rusty metal out of the way.

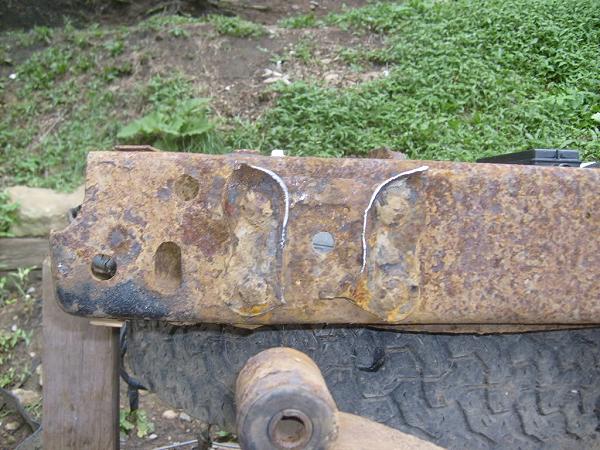

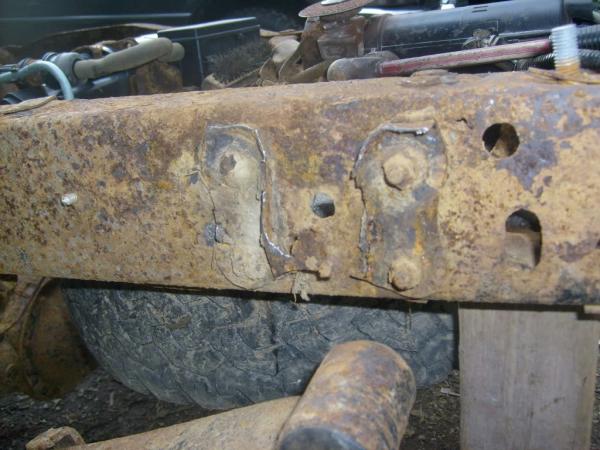

Grind the heads off the rivets.

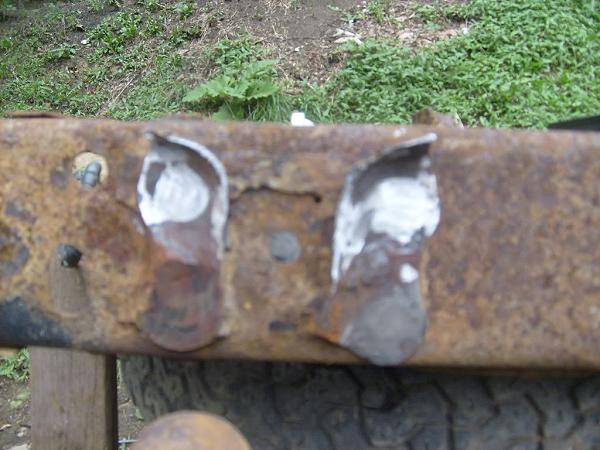

Use a chisel to remove the remaining bracket material.

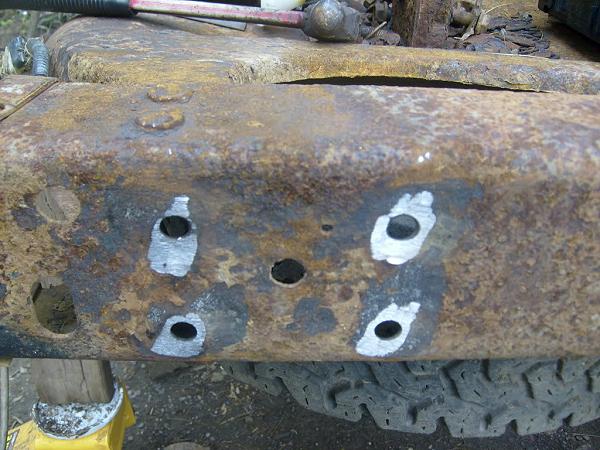

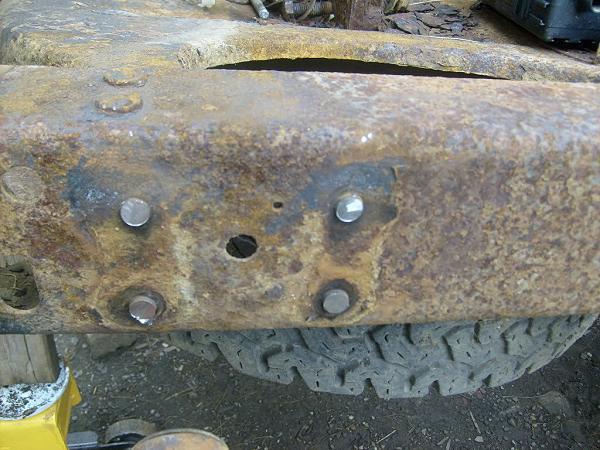

Grind the rivets flush with the frame and punch them out with a punch.

Next I took the grinder with a soft disk and cleaned the area and sprayed some paint on the frame to try and protect it a little.

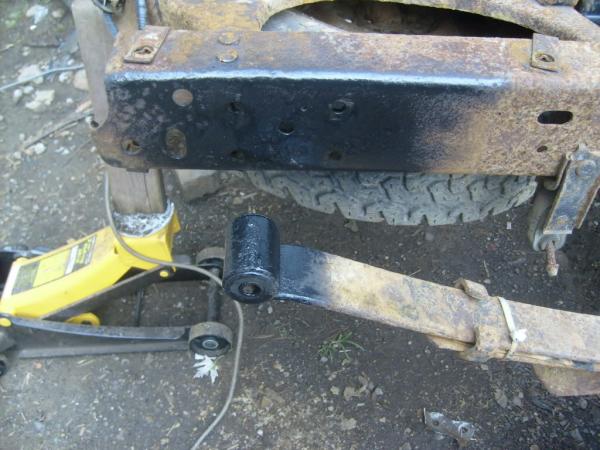

The easy part, just bolt it on. FYI- when tightening any suspension bushing always do so with the weight on the suspension.

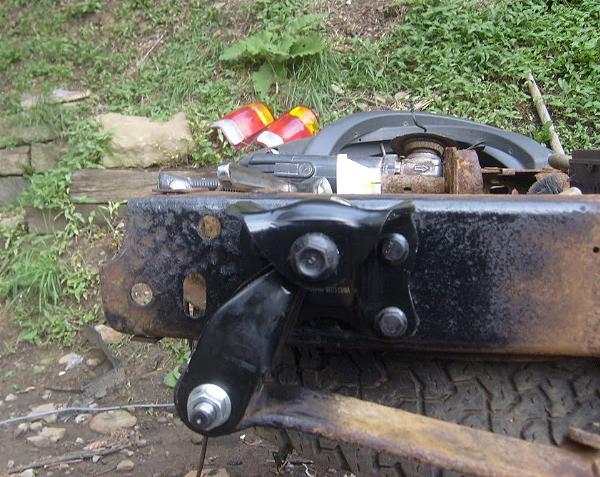

For some reason Ford decided to give you 2 nuts instead of rivets on the drivers side, I have seen this on all the trucks I have worked on.

Part Numbers (Submitted by forum member rboutin2):

Napa:

Rear shackle bracket
Part: BK 6504109
Product Line: Balkamp

Features & Benefits
Powder-Coated Finish Provides Extended Corrosion Resistance, Duplicates Original Equipment In Fit & Function

Attributes
Contents : (1) Bracket Kit
Manufacturer : Dorman Automotive Manufacturing
Manufacturer Part Number : 722-010
Material : Steel
Product Application : Rear Suspension

Rear Leaf spring front bracket

Part: BK 6504116
Product Line: Balkamp
Features & Benefits
Powder-Coated Finish Provides Extended Corrosion Resistance, Duplicates Original Equipment In Fit & Function

Attributes
Contents : (1) Bracket Kit
Manufacturer : Dorman Automotive Manufacturing
Manufacturer Part Number : 722-011
Material : Steel
Product Application : Rear Suspension

Orielly's:

Dorman - Leaf Spring Shackle
Part Number: 722-001
•OE Solutions
•UPC: 19495119241
