Please post your axle photos..........


1979 Bronco 9" 3rd Member

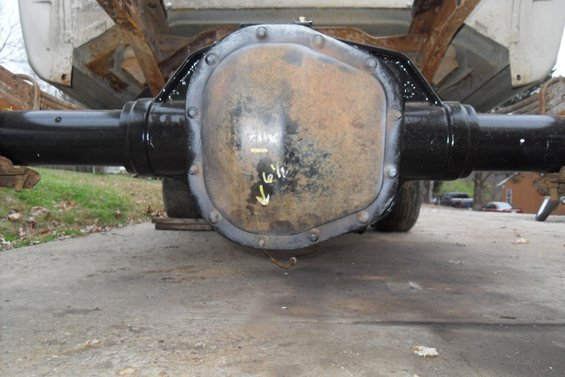

1979 Bronco 9" 'big bearing' axle housing



Will get pics of complete D44 and 9" today

Front 60 rear sterling



Front all cleaned up...

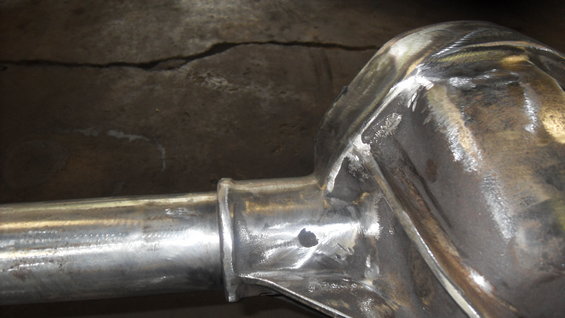

Rear all shaved down and cleaned

Dana 60 from ford f350

THIS IS A DANA 60 FROM A FORD 1988 F350(BOM VERIFIED) WITH KING PIN,AND DOUBLE PISTON CALIPERS






:annoyed:im so F**ING jelous right now.. i hate all of you :icon_rofl: i wish i had time money and tools to do this to my truck..

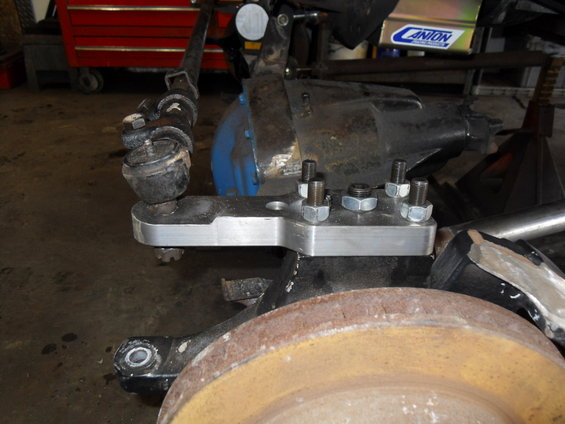

narrowed 79 dana 44




98 explorer rear


Last edited:
89 b-2 79bronco dana 44

http://www.therangerstation.com/forums/picture.php?albumid=672&pictureid=7884
ok it has 6" skyjacker spring and reid knuckles ,with custom high steer and 4.56 spooled,with molly shafts. ignore the grill ,thats all i had sitting around at the time,yes its a bronco two. if you need more photos ask and you shall recieve the photo documentation on the whole three year build.

Last edited:
i have a 74 f250 3/4 ton d60 rear that i just modified to 3" wide brakes shoes from a 99 e350 turbo diesel. and matching drum brake lp closed knuckle kingpin which i believe to be a d44. and also a what i believe to be a 76 f250 D44 hp 3/4 ton. i will post pics once i get some.

79 hp d44


Attachments

  • IMG_20111206_160806.jpg
    207.1 KB · Views: 530
Not sure if you need these pics, but here are some axle shaft pics.

They are comparison pics of 78-79 F150 shafts (760x Joint) to 71-77 Early Bronco (260? Joint).

The new looking shaft in the pics is a custom shaft from Bronco Graveyard that is EB length with the 760x joint.

There is also a comparison if the cheap replacement 297 joint vs the actual Spicer 760X

75 LP EB carrier


Mini spool


760 shafts


297 vs 760


Fullsize shafts vs EB long side


Stock EB vs 760 yokes


EB vs 760 shafts


I had to trim about a 1/2" off the short side inner and about a 1/4" off the long side inner since the blocks in the spool push the shafts out a 1/4" on each side. The fullsize short side inner is 3/8" longer than the EB from the get go.


-PlumCrazy

Last edited:
75 LP EB D44. Weld on wedgies





-PlumCrazy

Last edited:
Here's my wimpy little Dana 28. At some point I'll get the axles out, clean them up, install new U joints and do the seals and bearings just for peace of mind


Attachments

  • Screenshot_20230801-230500-710~2.png
    1.2 MB · Views: 108
