Why do I want to use a relay and do I really need to? Anytime you want to switch a device which draws more current than is provided by an output of a switch or component you'll need to use a relay. The coil of an SPDT relay that we most commonly use draws very little current (less than 200 milliamps) and the amount of current that you can pass through a relay's common, normally closed, and normally open contacts will handle up to 30 or 40 amps. This allows you to switch devices such as headlights, parking lights, horns, etc., with low amperage outputs such as those found on keyless entry and alarm systems, and other components. In some cases you may need to switch multiple things at the same time using one output. A single output connected to multiple relays will allow you to open continuity and/or close continuity simultaneously on multiple wires.

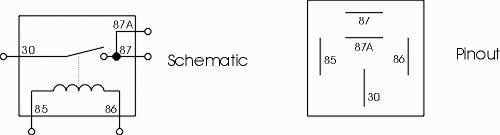

SPDT Relay: (Single Pole Double Throw Relay) an electromagnetic switch, consist of a coil (terminals 85 & 86), 1 common terminal (30), 1 normally closed terminal (87a), and one normally open terminal (87).

When the coil of the relay is at rest (not energized), the common terminal (30) and the normally closed terminal (87a) have continuity. When the coil is energized, the common terminal (30) and the normally open terminal (87) have continuity.

This relay is similar to a SPST, but pin 30 is switched to either output pin 87A or pin 87. Pin 87A is connected in the unpowered state.

SPST Relay: (Single Pole Single Throw Relay) an electromagnetic switch, consist of a coil (terminals 85 & 86), 1 common terminal (30), and one normally open terminal (87). It does not have a normally closed terminal like the SPDT relay, but may be used in place of SPDT relays in all diagrams shown on this site where terminal 87a is not used.

When +12V is applied between pins 85 and 86 the coil becomes a magnet which pulls the lever down making a connection between pins 30 and 87.

The relay above is a SPST relay with dual outputs. These are getting harder to find.

Here is some useful information on wire:

The first thing you have to do is determine the current you have to carry. For DC circuits, that's relatively easy. Some equipment on a car is rated directly in current draw. Auxiliary fans, fuel pumps and things like that are rated in current draw - Amps. Some equipment is rated in Watts - mostly the lighting equipment. The power requirement in Watts will be printed right on the bulb or stamped in the base. To come up with amps use one of the formulas shown.

In an automotive electrical system, these formulas are easier since a constant of 12V is always present.

Let's calculate for a typical 100 watt driving light - the power required is 100 Watts and the voltage is 12 Volts - so the current requirement is 100 Watts/12 Volts = 8.33 Amps.

Let's assume you have to run a wire 6 feet from a relay to the lamp and look at this chart.

Using the 10 ft. length column you'll find that you can run 15 Amps on 10 feet of 18 AWG with only ½ Volt drop. Go to the next size larger for safety margin and you're at 16 AWG.

Now in reality, you have to balance the mathematical results with mechanical reliability and efficiency. For lighting, the rated output is figured at 13.5 volts, not 12 volts. With the 0.5 volt drop shown in the chart, you have 13.0 volts available at the lamp - and at that 95% rated voltage, you are only going to get 80% of the rated output - or the equivalent of 80 watts from a 100 watt lamp.

In the example you would go to 14 AWG as the wire and connectors are physically stronger, easier to work with, and there's no voltage drop.  I personally won't wire lights with anything less than 12 AWG. 14, 12 and 10 AWG is what you should be using in your truck. Those three and crimp-on connectors are readily available just about anywhere. And except for primary circuits, those three sizes will cover just about anything you want to wire in a truck with an adequate safety margin.
