Transfer Case Identification

TRS Tech Library Side Menu

Ranger Buyers Guide









Connect to the Internet if you can't see this image.

Borg Warner 1350 Mechanical
Without External Front Yoke
1983-1990 Ranger, Bronco II & Explorer



Connect to the Internet if you can't see this image.
Borg Warner 1350 Electric
With External Front Yoke
1987-1989 Ranger\Bronco II




Connect to the Internet if you can't see this image.
Borg Warner 1354 Mechanical
Ranger, Bronco II & Explorer 1990-1995




Connect to the Internet if you can't see this image.
Borg Warner 1354 Electrical
Ranger, Bronco II & Explorer 1990-2004





Connect to the Internet if you can't see this image.
Borg Warner 4404

1996-1997 Explorer




Connect to the Internet if you can't see this image.
Borg Warner 4405
1995-2001 Explorer
(Control Trac)

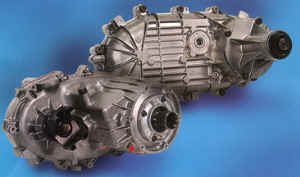

NP205

Connect to the Internet if you can't see this image.

NP205
Dodge 1969-93, Ford 1969-79
Chevrolet, GMC 1969-91



Connect to the Internet if you can't see this image.
NP208 Non-Synchro
Dodge 100/350 1980-82, Jeep 1980-90
Ford Bronco,F150/350 1980-86



Connect to the Internet if you can't see this image.
New Process 228/229J
Cherokee, Wagoneer, Grand
Wagoneer, Comanche 1981-91




Connect to the Internet if you can't see this image.
NP231J
Jeep Wrangler, Cherokee
1987-96



Connect to the Internet if you can't see this image.
NP242J
Jeep Wrangler, Cherokee 1991-97



Connect to the Internet if you can't see this image.
Dana 300
Jeep CJ's 1980-86



Connect to the Internet if you can't see this image.
Dana 20



Connect to the Internet if you can't see this image.
Atlas II
By Advance Adapters



Transfer Case: A mechanical device with the capability to send power to a front driving axle as well as a rear driving axle. Transfer cases drive the front output shaft with either a geartrain or a flat Hyvo-type chain. Transfer cases designed for four-wheel-drive vehicles offer a low-range drive mode, where all-wheel-drive vehicles typically have a single-speed transfer case.

Full-Time 4WD: A full time 4WD system provides engine power to both the front and rear axles on all surfaces at all times. This usually requires a transfer case with a center differential, a viscous coupling, or both. Full-time 4WD improves traction and handling on paved surfaces in inclement weather, but may reduce fuel economy.

Current model vehicles that offer full-time four-wheel drive: Range Rover, Land Rover Defender, Toyota Land Cruiser, Jeep Grand Cherokee, Mitsubishi Montero, Land Rover Discovery, Ford Explorer.

Viscous Coupling: An ingenious device that can act as a limited-slip differential.

A viscous coupling is a small sealed drum filled with a measured quantity of silicon fluid. Inside the drum are two sets of interleaved plates. One set of plates is splined to the outer drum and one set is splined to the inner shaft.

In a typical application, a viscous coupling is installed in a transfer-case center differential to act as a limited-slip. The outer drum is attached to the front output shaft, for example, and the inner shaft is attached to the rear output shaft. As long as both front and rear output shafts turn at the same speed, both sets of plates in the viscous coupling turn at the same speed and there is no relative motion between the plates.

If the front shaft were to begin turning faster than the rear output shaft, indicating front wheel slip, the two sets of plates would develop relative motion and begin slicing through the silicon fluid. The silicon fluid would heat up and solidify, momentarily locking the sets of plates together and counteracting an open differential's tendency to transfer only limited amounts of power. With the plates locked together, relative motion stops; the silicon fluid cools down and returns to its liquid state, freeing the plates.

Part-Time 4WD: Currently the least expensive and most common 4WD system. A part-time 4WD system is designed to be operated only on reduced-traction surfaces. The transfer case lacks any mechanism to allow front-to-rear axle speed differentiation. Thus, any accumulated driveline bind must be released via tire scrub. Extended use of part-time 4WD on a high-traction surface, such as dry pavement, can adversely affect handling and damage the driveline.

Some, but not all, part-time 4WD systems allow the operator to shift from two- to four-wheel drive "on-the fly."

All-Wheel Drive (AWD): An all-wheel-drive (AWD) vehicle has a driveline with the capability to send power to all four wheels, usually on a full-time basis. Most AWD vehicles are designed for all-season, instead of all-terrain, operation: ground clearance is usually closer to that of a car than a 4x4 truck, and the single-speed transfer case lacks a low-range. All-wheel-drive trucks currently on the market include the Oldsmobile Bravada, Toyota RAV-4 and Mercury Mountaineer.

Low-Range: The transfer case drive mode that provides maximum gear reduction to the wheels and multiplies engine power. Low-range is for slow-speed operation. Where the case's high-range ratio may be 1.00:1, low range ratios are typically between 2.20:1 and 3.50:1.

High Range: A transfer case drive mode, like Neutral or low-range. Most conventional part-time transfer cases offer a 2-Hi as well as a 4-Hi mode. High-range is for normal-speed operation. In most instances, high-range is a straight 1.00:1 ratio, offering neither a gear reduction (underdrive) nor an overdrive. Some full-time systems are not a straight 1.00:1. The Range Rover's high-range is actually a 1.206:1 underdrive.

Shift On The Fly: A vehicle with a four-wheel drive system designed to shift between two- and four-wheel drive while moving is said to have a shift-on-the-fly system. Current part-time shift-on-the-fly 4WD systems include GM's Insta-Trac, Jeep's Command-Trac, and Toyota's 4WDemand.

Synchro: In shift-on-the-fly four-wheel-drive applications, a synchro is a mechanism that synchronizes the speed of the to-be-engaged front output shaft to the speed of the rear output shaft, spinning the front driveshaft up to road speed before the front drive axle is engaged.

Every part-time shift-on-the-fly four-wheel drive system needs some type of synchro. Many use a synchro in the transfer case identical to the synchro found in manual transmissions. Others use a magnetic clutch similar to that used on an air conditioning compressor.

Hub, Automatic-Locking: Automatic-locking hubs automatically engage, or "lock," the hub and tire and wheel assembly to the front drive axle's axle shaft when the operator engages a four-wheel drive mode. When released, or "unlocked," the axle shaft is disengaged from the hub body assembly and the wheel can rotate freely on the spindle.

To unlock most automatic-locking hubs, the operator must select a two-wheel drive mode and drive the vehicle straight backwards at least 10 feet. The hubs of any part-time four-wheel drive system should always be unlocked before driving on dry, hard-surfaced roads.

Hub, Manual-Locking: Manual-locking hubs perform the same function as automatic-locking hubs. However, the hubs must be manually locked or unlocked, usually by twisting a part of the hub from a "free" position to a "locked" position. Advantages of manual hubs include greater flexibility of operation, durability, and they provide the option of flat towing of the vehicle without a trailer.


Transfer Case Type & Low Ratios:

Model   Mode Drive Low Ratio
NP203 Full-Time Chain Drive 2.00:1
NP205 Part-Time Gear Drive 1.96:1
NP207 Part-Time Chain Drive  2.61:1
NP208 Part-Time Chain Drive 2.61:1
NP219  Part-time/Full-Time Chain Drive 2.61:1
NP228  Part-Time Chain Drive 2.62:1
NP229  Part-Time/Full-Time Chain Drive 2.62:1
NP231   Part-Time  Chain Drive  2.72:1
NP241 Part-Time Chain Drive 2.72:1
NP242 Part-Time/Full-Time Chain Drive   2.72:1
BW1305 Full-Time   Chain Drive 2.57:1
BW1345   Part-Time      Chain Drive 2.74:1
BW1350  Part-Time Chain Drive  2.48:1
BW1354  Part-Time Chain Drive  2.48:1
BW1356  Part-Time Chain Drive 2.69:1
BW1370  Part-Time Chain Drive 2.69:1
BW4404  All-Wheel Drive  Chain Drive ?
BW4405 ? Chain Drive ?
Dana 18 Part-Time Gear Drive  2.46:1
Dana 20 Part-Time Gear Drive   2.46:1
Dana 24 Part-Time Gear Drive 1.86:1
Dana 300 Part-Time Gear Drive  2.62:1
Spicer 20  Part-Time Gear Drive   2.03:1

BW1350 & BW1354
The 1350 and 1354 are both 3-piece aluminum part time transfer cases.  They both transfer power from the transmission to the rear axle and when actuated, also the front drive axle.  The unit is lubricated by a positive displacement oil pump that channels oil flow through drilled holes in the rear output shaft.  The pump turns with the rear output shaft and allows towing of the vehicle at maximum legal road speeds for extended distances without disconnecting the front and or rear driveshaft.  The 1350 has a splined front receiver where the front driveshaft slides in.  The 1354 has a yoke on the front that accepts a u-joint and holds it in place with straps.  The 1350 and 1354 are produced as a mechanical shift and electronic shift.

1350/1354 Flange & Yoke Conversions
My 1983 Ranger used the small 2.5-inch wide u-joint and 2-inch driveshaft.  The Rangers flange had a 2-1/2 inch spacing between bolt holes and the flange on the Explorer 8.8 rear axle I installed had a 3-inch spacing between bolt holes.

My driveshaft wouldn't bolt to the new 8.8's flange, so I decided to have a new one built.  I could have found a flange for the 8.8 that would accept the 2.5-inch u-joint in order to retain my original shaft, but I wanted to beef things up a bit. I got rid of the yoke on the transfer case and replaced it with a flat flange from a 1986 BroncoII BW1350 transfer case.  I now have a flat flange on the axle and on the transfer case with a 1310 u-joint at each end secured in flat flanges.  The driveshaft then bolts in flange to flange.  These flat flanges allow the bigger u-joints and eliminate the weak u-joint straps at the transfer case.

BW1359
The 1359 is a 3-piece aluminum case.  It consists of a front mounting adapter, a front case and a rear cover that transmits power from the transmission to the rear axle.  The input shaft and the output shaft are connected together by a coupling sleeve providing direct drive between the 2 shafts.  The case assembly contains no lubricant and none should be installed.

BW4405
Works like a BW1354 but also houses a transfer case clutch.  This clutch , which is controlled by the generic control module (GCM), enables the vehicle to be driven in 4wd on dry pavement.  It also has a dealer installed Neutral (N) position mode.

Dana 20
The Dana 20 used in Bronco's had a low range ration of 2.46.  The Dana 20 used in Jeeps, Scouts, and Blazers had a low range ratio of 2.03 and there cases aren't interchangeable.  For purposes here, the Scout, Blazer, and Jeep versions have been called Spicer 20's.

The C-4/Dana 20 is a popular swap in Ford Rangers.  This swap will require modification to the drive shaft lengths.

Wild Horses (209-943-0991) offers the Cold Duck Dual Dana 20 transfer case for a low gear ratio of 6.05:1.

Atlas II

Advance Adapters offers an Atlas II (3.8:1 Ultra low) and (4.3:1 Extreme low) gear-driven transfer case is the ultimate gearing solution for combining both on and off-road performance. With an Atlas equipped 4WD, you have the opportunity to select a sensible ring and pinion gear ratio for great street performance and strength. Combined with a low-geared crawl ratio of your choice, you now have the ultimate combination. This allows you to compete with the most well equipped off-road vehicles and cruise comfortably down the paved roads.

Fact:  Chain failures are most often due too poor maintenance rather than simply to much power or torque load.


Ranger Cases:
BW1350 1983-1989  W/o external front yoke, w/bolt on shift linkage (manual shift)
  1987-1989  W/external front yoke (manual shift)
  1987-1989  W/external front yoke (Electric shift)
  1983-1990  W/o external front yoke (manual shift) one piece shift linkage
  1986-1990  W/o external front yoke (electric shift)
BW1354 1990-1995  (Electric Shift) with speedo hole, with sensor hole fixed front output yoke
  1990-1995  All (manual shift)
  1995-1998  (Electric Shift) rear circular flange front fixed yoke with speedo hole, w/o sensor hole
  1998-2000  (Electric Shift) rear circular flange, front cup yoke w/o speedo hole, w/o sensor hole,
  2000-2004  (Electric Shift) rear circular flange, front cup yoke w/o speedo hole, w/o sensor hole, w/o shift on the fly
  2000-2004  Manual shift, rear circular flange, front cup yoke w/o speedo hole, w/p sensor hole

Bronco II Cases:

BW1350 1984-1989  W/external front yoke w/bolt on shift linkage (manual shift)
  1984-1990  W/o external front yoke (manual shift) one piece shift linkage
  1986-1990  W/o external front yoke (electric shift)
  1987-1989  W/external front yoke (manual shift)
  1987-1989  W/external front yoke (electric shift)
BW1354 1990  (Electric shift) with speedo hole, with sensor hole fixed front output yoke

Explorer Cases:

BW1354 1991-1995  (Electric Shift) with speedo hole, with sensor hole fixed front output yoke
  1991-1995  All (manual shift)
  1995-1998  (Electric Shift)rear circular flange front fixed yoke with speedo hole, w/o sensor hole
  1998-2000  (Electric Shift)rear circular flange front cup yoke w/o speedo hole, w/o sensor hole
  2001-2002  Electric shift, rear circular flange, front cup yoke w/o speedo hole, w/o sensor hole BW without coil
BW4403 1999-2001  AWD
BW4404 1996-1997  Viscous drive front and rear flat circular flange with speedo hole
  1997  Viscous drive, front cup yoke, rear flat circular flange w/speedo hole
  1998  Viscous drive, front cup yoke, rear flat circular flange w/o speedo hole
BW4405 1995-1997  (Electric Shift) circular rear flange, fixed front yoke torque on demand, front & rear sensor, speedo hole
  1996-1998  (Electric Shift)front cup yoke, rear circular flange torque on demand, front and rear speed sensor, speedo hole
  1998-2001  (Electric Shift)(front & rear speed sensor) torque on demand, front cup yoke rear circular flange w/o speedo hole
BW4410 2002-2004  Viscous drive, front cup yoke, rear circular flange. w/o speedo hole
BW4411 2002-2004  (Electric Shift)front cup yoke, rear circular flange, w/o speedo hole




Exploded Views: Click HERE for a PDF file with exploded views and part numbers of various transmissions and transfer cases.

Even More Transfer Case Photos:

BW1350 Manual Transfer Case (Bronco II) BW1354 (Explorer) BW1350 Manual Case W/Out External Front Yoke
BW1350 Manual Case W/Out External Front Yoke BW1350 Electric Shift 1998 BW1354 Electric Shift

BW4405 Electric Shift (Explorer) BW4405 (Explorer)
